eMylo 12V Relay Switch with 433MHz Wireless RF Remote Control - 2-Channel System with 2 Transmitters for Door & Light Control | Home Automation & DIY Projects
$13.74
$24.99
Safe 45%
eMylo 12V Relay Switch with 433MHz Wireless RF Remote Control - 2-Channel System with 2 Transmitters for Door & Light Control | Home Automation & DIY Projects
$13.74
$24.99
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
19 people viewing this product right now!
SKU: 10108372
Guranteed safe checkout
Description

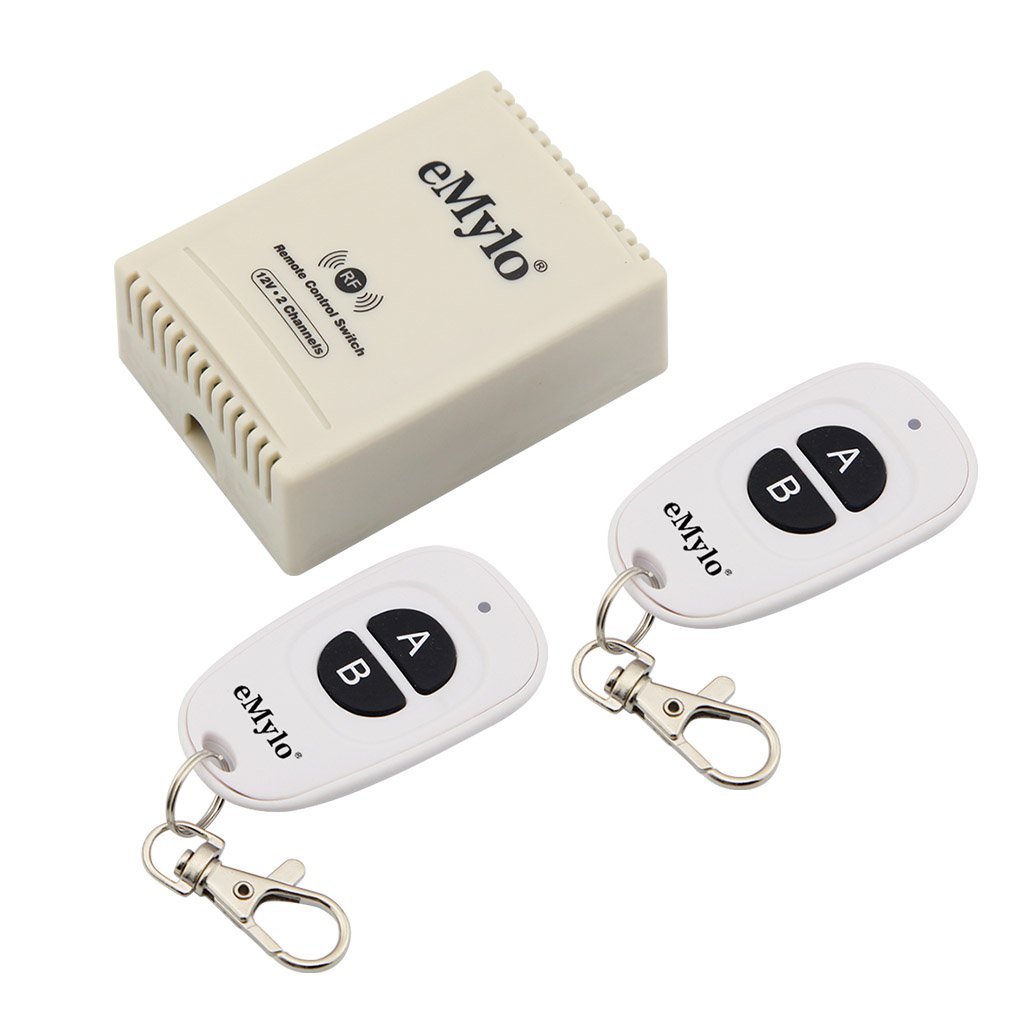

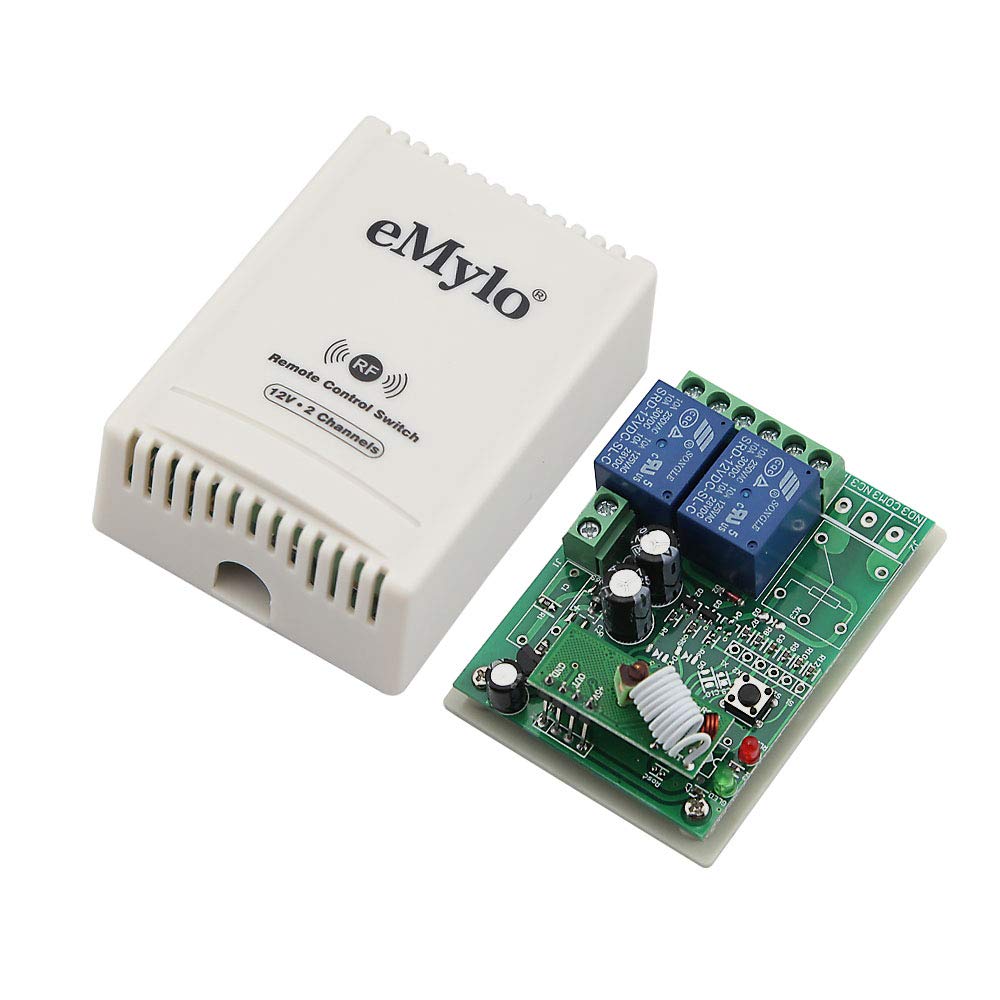

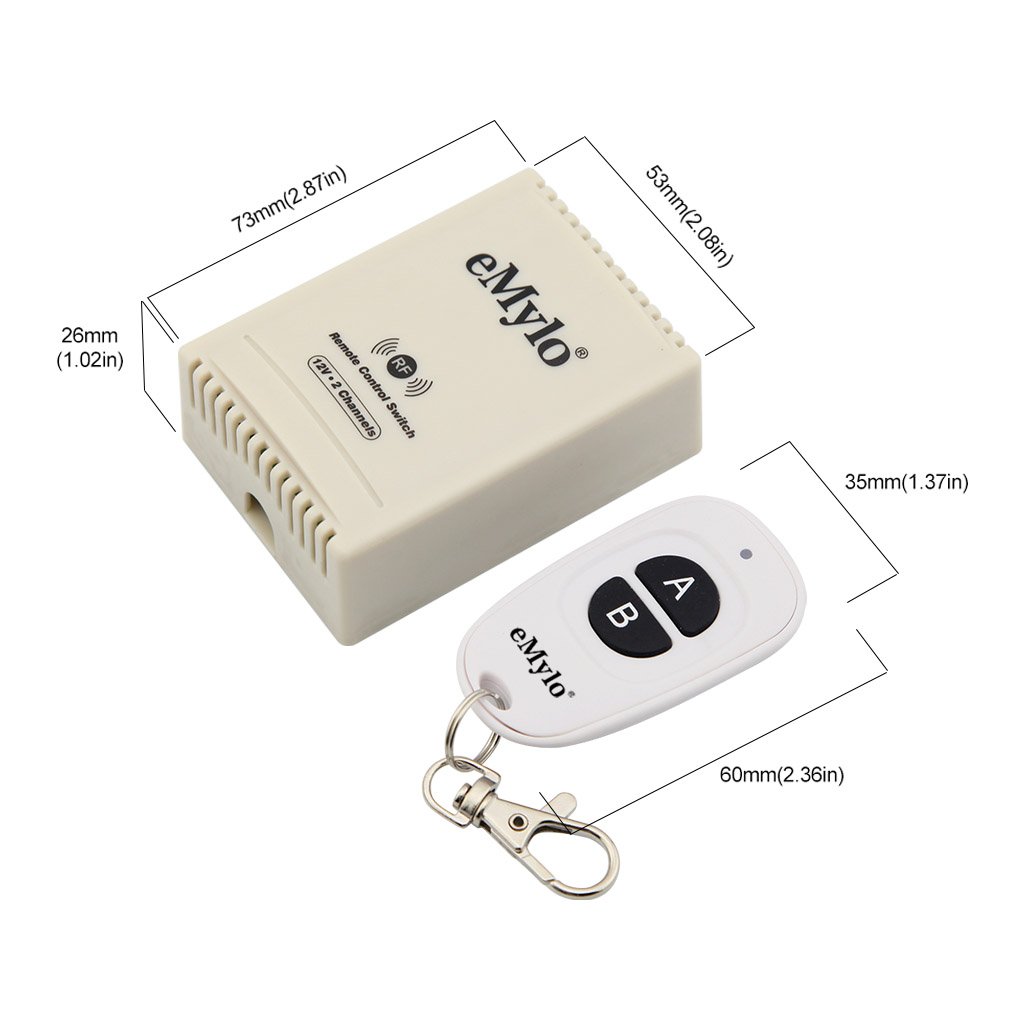

How this remote control switch type works: After finishing wiring, press the button, the relevant load will on, press other button again, the load will off (Factory default working mode--Toggle) Specifications: Transmitter: 1: Operating Voltage: DC 6V 2: Operating Frequency: 433Mhz 3: Vibration Resistance: 4.7M 4: Chip Type: PT2260 5: Modulation: ASK (Stable, less interference) 6: Encode Type: Group Coding 7: Battery Type: 2pcs CR2016 3V 8: Remote Distance: 30-50m (Theoretical value) 9: Ambient Temperature:-30 ℃ -70 ℃, Humidity<95% 10: Product Dimension: 135x42x25mm Receiver: 1: Input voltage: DC 12V 2: Channel: 2 channel 3: Operational frequency: 433Mhz 4: Encoding mode: intelligent-learning code 5: Output type: Passive output 6: Max load: 10A 7: Temperature: -30 °C -70 °C; RH: <95% 8: Size: 69x49x17mm( board dimension) 75x65x29mm( case dimension) You will get: 2 x transmitter 1 x 2-channel relay 1 x English Manual
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Reviews
*****
Verified Buyer
5
I picked up the 12V 2-channel version of this to control some 12V lights on a trailer.The electrical connections were difficult to make secure with 22AWG wire, they just didn't seem to get a good hold. I also had to trim some plastic on the outer housing to allow space for the input wires, it would have pinched the wires quite severely if used without modification.Other than some install issues, this worked really well. Response time from remote click to relay activation is very fast, a fraction of a second. Range is adequate, probably 50 ft with some obstructions. I managed to program the built in garage door opener of my vehicle with the frequency of the remote. Now I can just press a button in my vehicle and it will trigger the relay, without needing the remote, very convenient.Everything considered, it's really impressive that you can get a device like this for $20. Great value.
