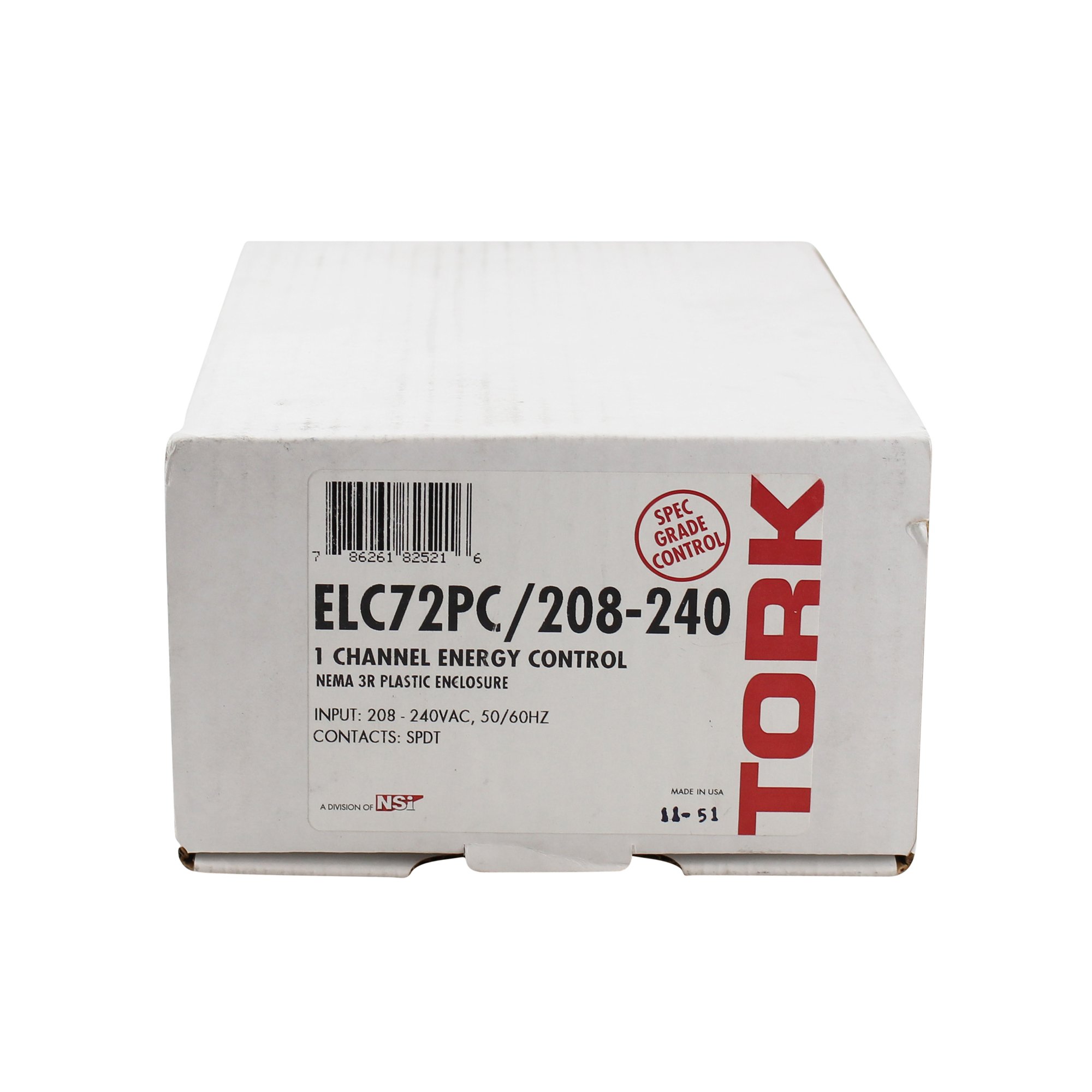

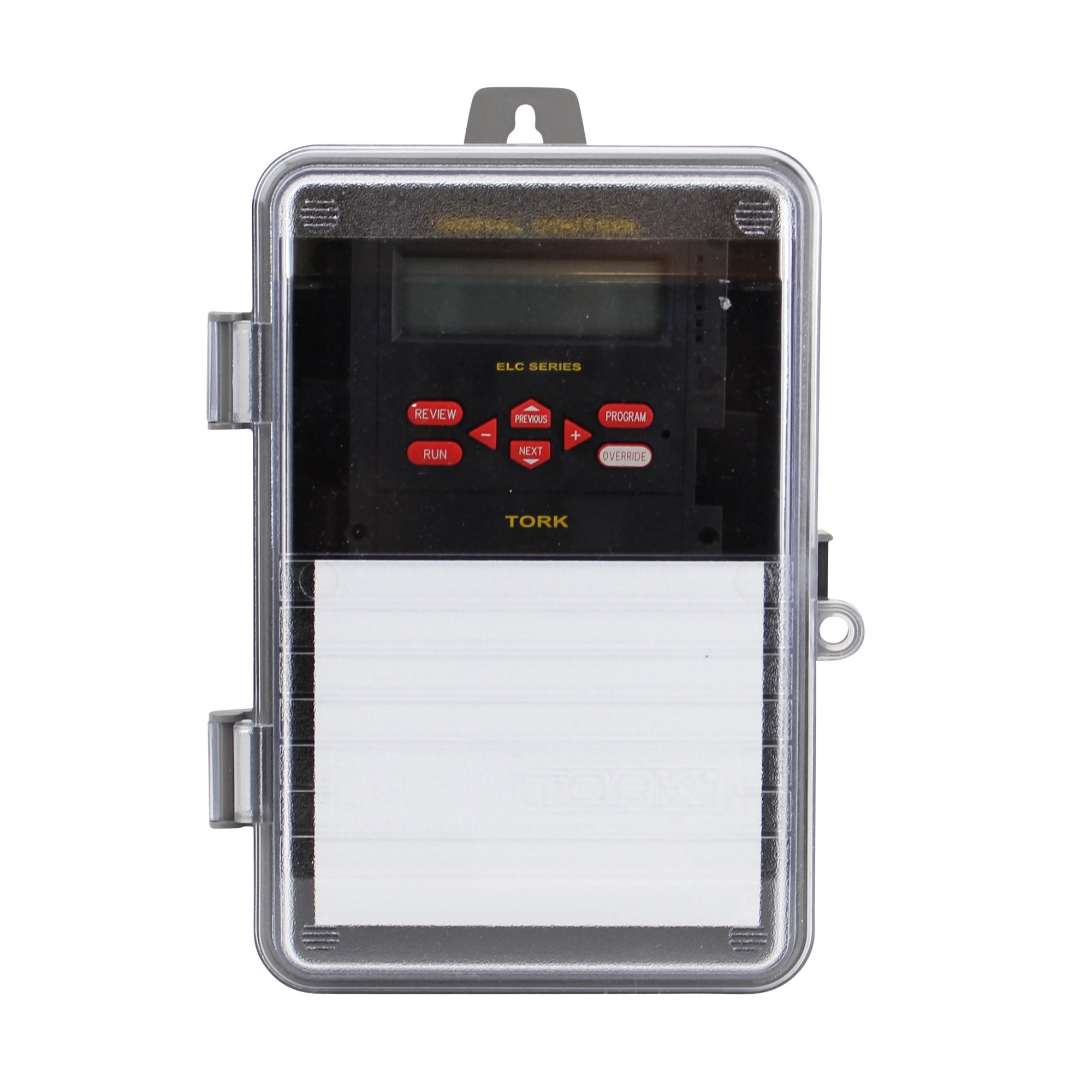

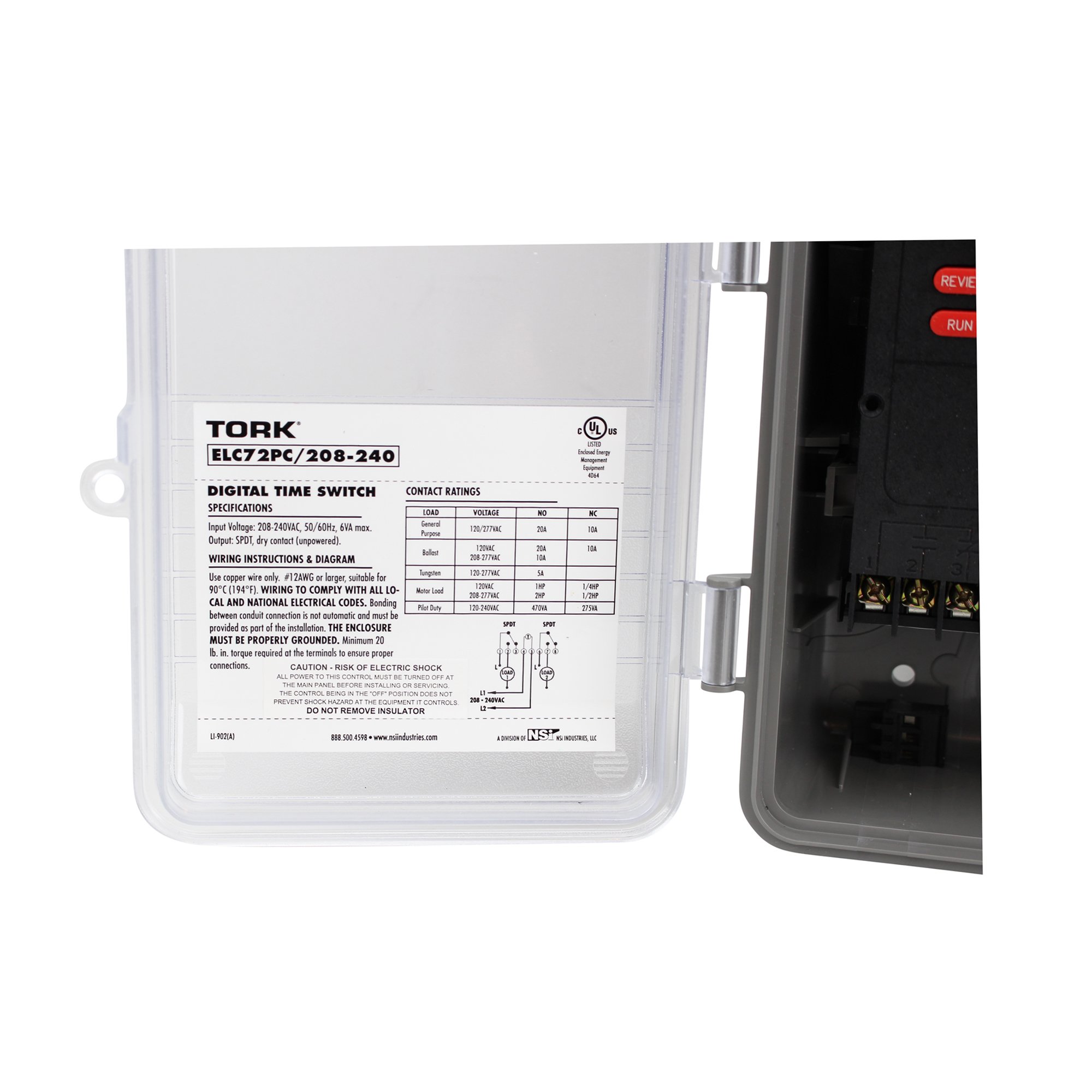

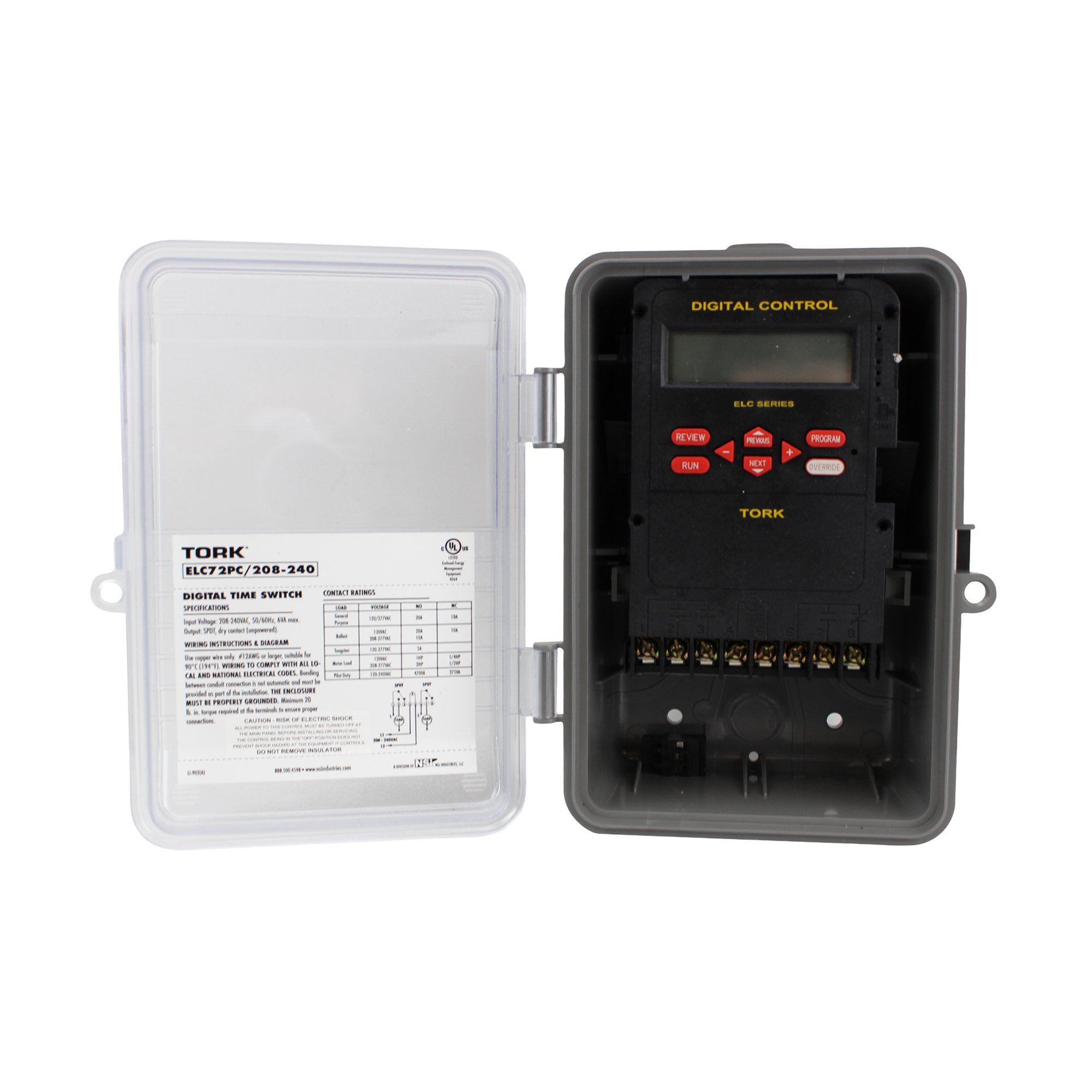

This NSi Industries ELC72PC/208-240 digital time switch accepts 208-240 VAC input and its SPDT output contacts can activate a 20 amp load or 2 hp motor on each of its two channels. This multipurpose timer includes 128 pairs of time-based on/off cycles and 32 sensor-driven cycles, has a minimum cycle time of one minute, and is suitable for individualized daily operation. A rechargeable super capacitor provides up to a week of backup power to maintain time and schedule settings. This timer can adjust for daylight saving time and leap year and compensate for sunrise and sunset variation based on Earth's latitude. The single-pole double-throw (SPDT) contacts are housed within a Noryl plastic alloy enclosure that meets NEMA-3R standards for water resistance and has a lockable hasp. The enclosure is suitable for both indoor and outdoor use and mounts to an external surface. This digital timer is Underwriter Laboratories (UL) Listed for quality assurance and is suitable for controlling lighting, heaters, and equipment motors.SpecificationsSwitch typeDigital 365-day, 24-hour timer with 128 unique set points each day, 32 sensor-driven cycles. Two channel operation.Input power supply208-240 VAC, 50/60 Hz, 6 W power consumption, rechargeable super capacitor backupOutput contactsSPDT contacts, 20 amp load rating, 2 hp motor load rating, momentary contact-capableOn/off controlOne-minute minimum on/off cycle, 128 time-based cycles and 32 sensor-driven cycles each day, 26 holiday settingsEnclosureNEMA-3R Noryl plastic alloy enclosure with clear Lexan cover, indoor/outdoor use, external surface mountTerminal wire size range#10 to #22 AWG (American wire gauge)Operating temperature range-20 to +140 degrees F (-29 to +60 degrees C)Standards metUL ListedAutomatic switches are used to turn on or off electrical devices and are activated by time, light, and motion. Time activated switches (also known as timers) operate at preset time intervals during a daily or weekly period and can be either mechanical or electronic. Mechanical timers feature a dial with multiple pins to set the on/off time intervals. Electronic timers feature an LCD display and pushbuttons to set the time intervals. Light activated switches (also known as optical or photo) operate when ambient light levels reach preset values, generally measured in foot candles. Motion-activated switches (also known as motion sensors) operate when an electronic field of a preset range is interrupted. These switches can include energy saving logic that uses combinations of time, light, and motion to operate and can include one or more device outlets or circuit contacts. Automatic switches are used to control indoor lights, outdoor lights, appliances, and small equipment motors.NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
