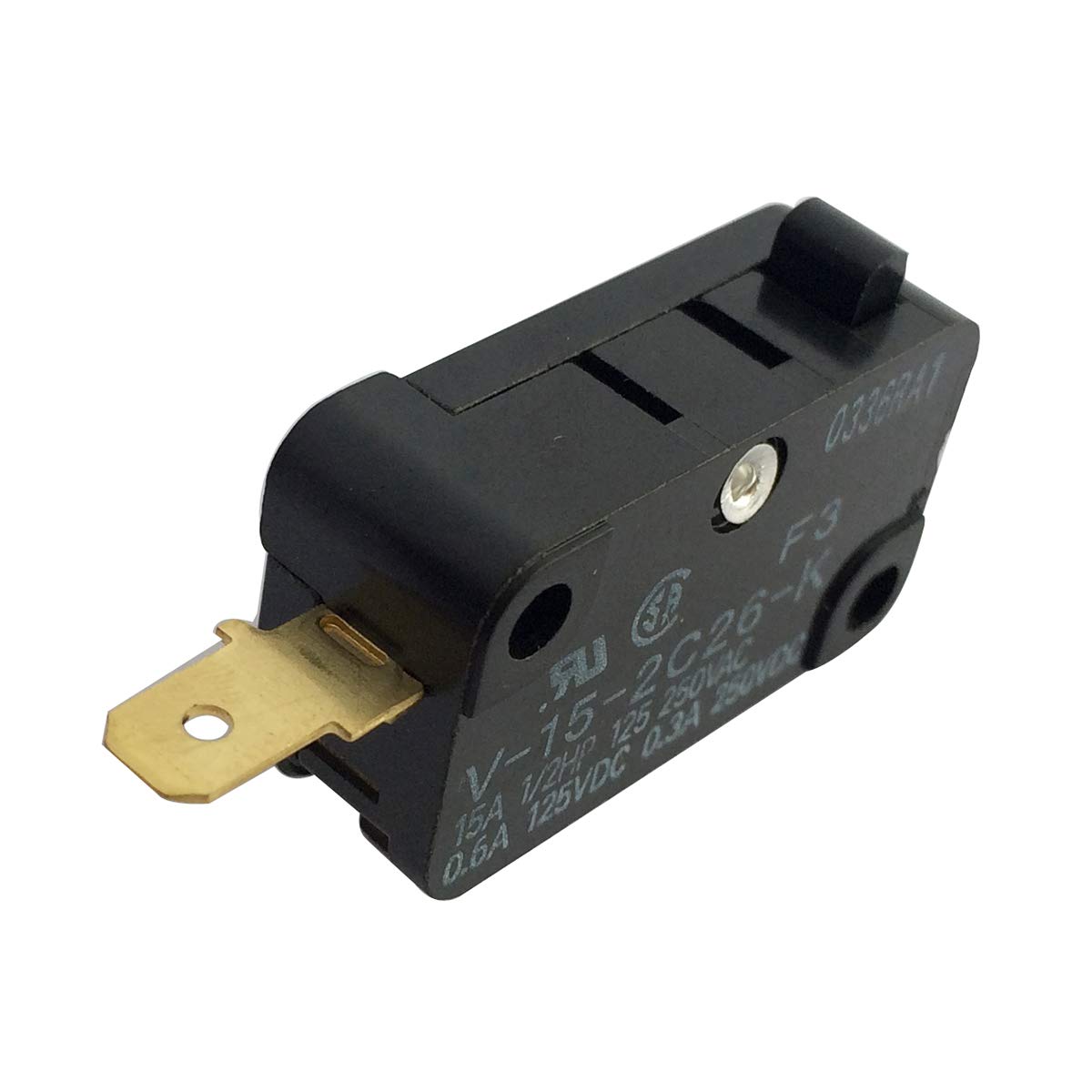

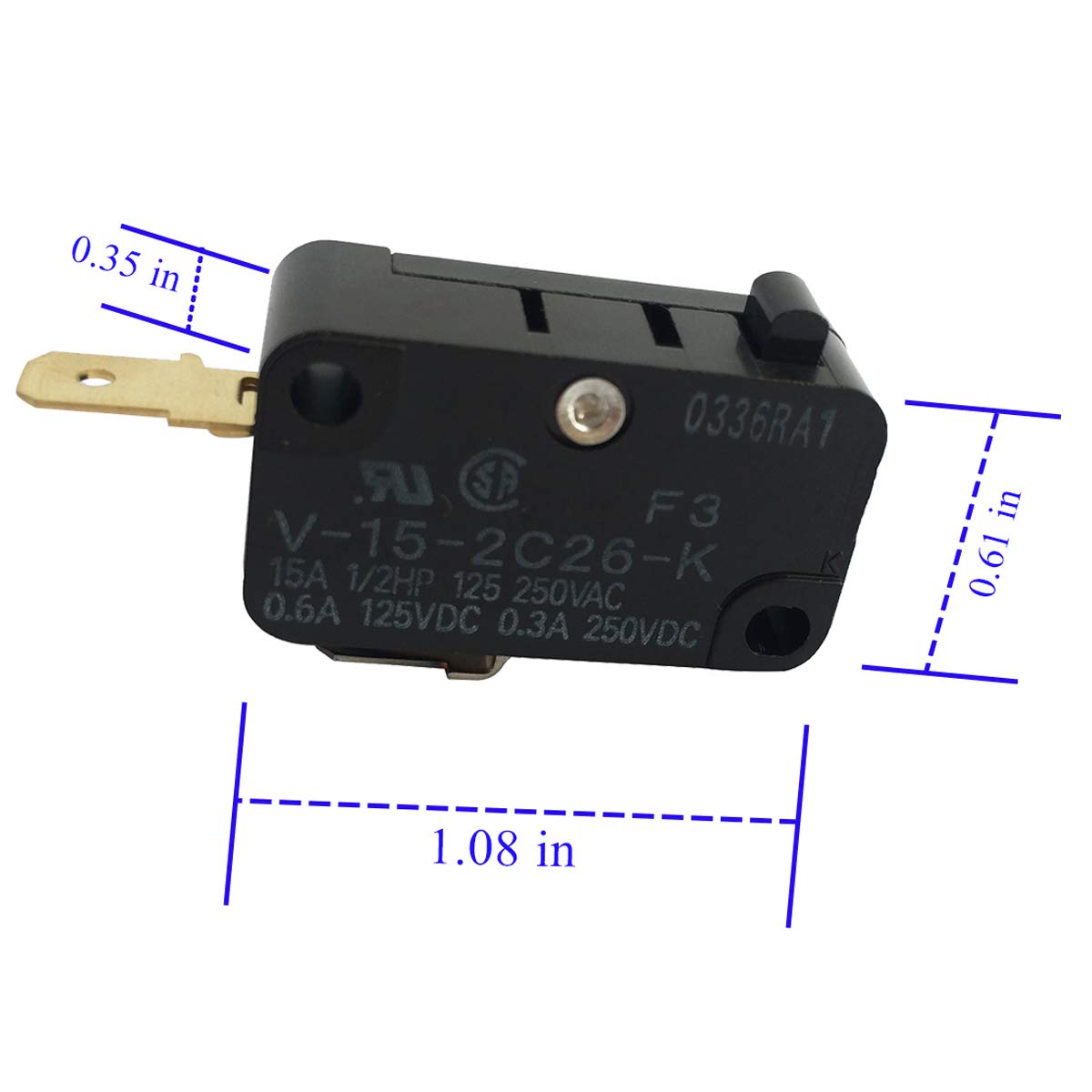

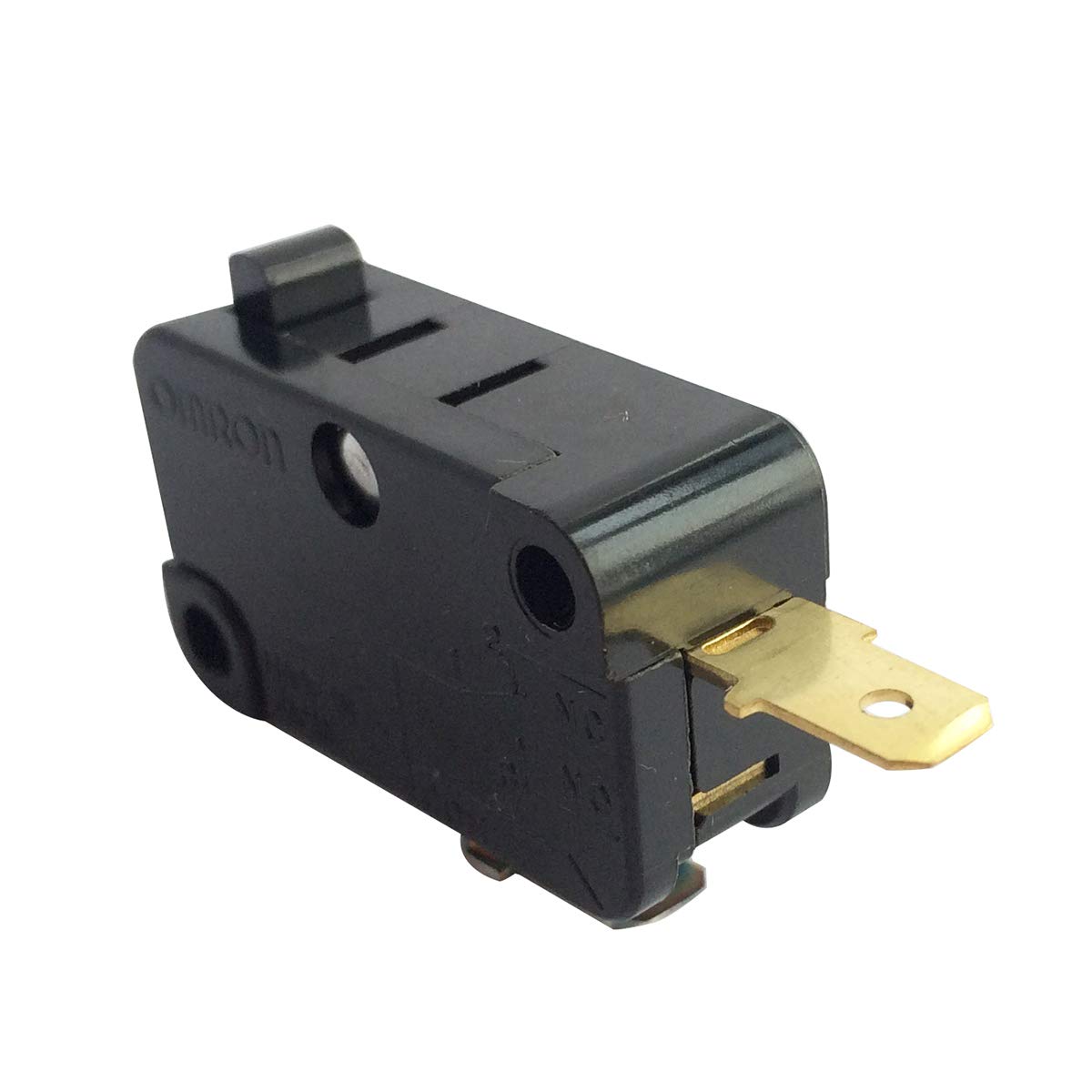

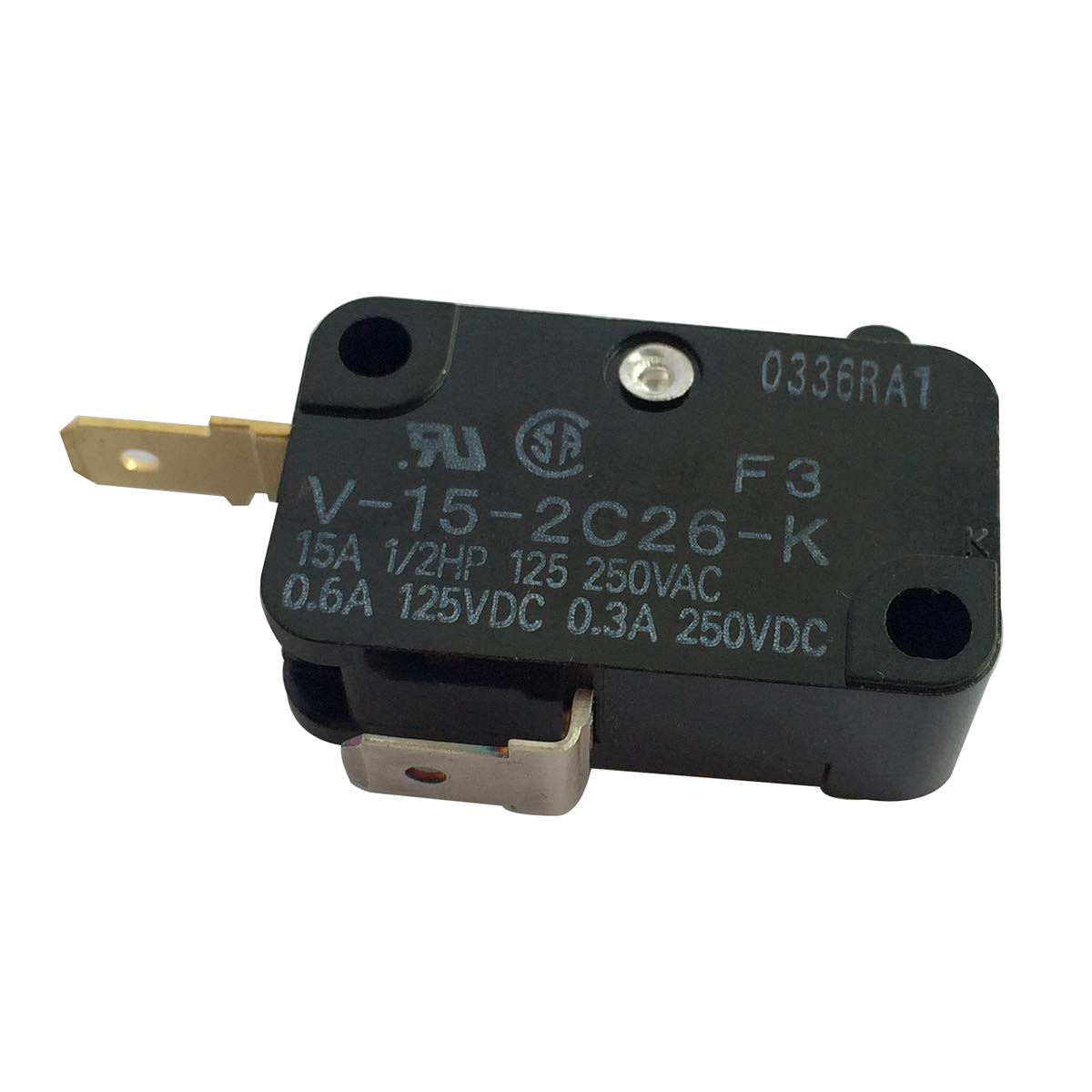

V-15-2C26-K snap-action switch Key Features: ● A single-pole single-throw Miniature Basic Switch that offers high reliability and security with pin plunger actuator, NC contact type. ● Exact replacement for switch used in SHURflo 2088 series Pumps. Used in SHURflo 94-231-20 Switch Housing. ● Microswitches with switching currents of 10 to 21 A. ● Used for interrupting current when doors are opened or closed. ● Available in two types of cases: thermoplastic resin and thermosetting resin. ● 15mΩ Maximum contact resistance, 100MΩ at 500VDC Minimum insulation resistance V-15-2C26-K Snap-action Switch Character: Pole Throw Configuration: SPST, Switch Configuration: N.C.Contact Form: SPDTMounting Type: Chassis Mount Actuator Type: Round (Pin Plunger)Post Position: Bottom Switch Function: On-MomMounting: Screw MountIngress Protection: IP40 V-15-2C26-K Switch V Series Micro Switch Contact Rating & Voltage: 15A AC250V DC125V Operating Temperature: -25 to 80 °CTerminal Style: Quick Connect - 0.187" (4.7mm)Operating Position：0.579" (14.7mm)Operating Force: 400gfRelease Force: 80g Specification: 15A 1/2HP 125 250VAC 0.6A 125VDC 0.3A 250VDC When a Shurflo pump stops or becomes temperamental (only working when you jiggle the wires) the chances are it's the micro switch that is burnt out. If one of the plastic connectors, going into the pressure switch, is brown or discoloured it definitely is. V-15-2C26-K Switch W10727360 & W10269458 & W10269460 Switch Basic/Snap Action Switch 3B73362F WB24X830 Microwave Oven Door Switch KW3A-16Z0-A200-76 Microwave Oven Door Switch Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 430 4.5 out of 5 stars 1,099 5.0 out of 5 stars 8 4.5 out of 5 stars 252 4.5 out of 5 stars 69 Price $9.99$9.99 $9.57$9.57 $12.69$12.69 $7.99$7.99 $6.99$6.99 Rated Current/ Voltage 15A 1/2HP 125 250VAC, 0.6A 125VDC 0.3A 250VDC 16A 125, 250VAC 0.6A 125VDC, 0.3A 250VDC 1/2HP 125,250VAC 15.1A 250VAC, 22A 125VAC 0.6A,125VDC; 0.3A, 250VDC 16A,1/2HP, 125/250VAC 10A 30VDC, 16(4)A 125/250VAC Contact Arrangement SPST-NC SPDT SPDT SPST-NC/NO SPDT Replace Models Shurflo 2088 Series, Shurflo 94-231-20 W10727360 replaces: W10727360VP, AP5950105, PS10057151 W10269458 switch replaces for AP4429884, 1550016, AH2361111, EA2361111, PS2361111 W10269460 Microwave Switch replaces AP4429920, 1550018, AH2361113, EA2361113, PS2361113 V3-19M WB24X830 replaces for WB24X0800, WB24X0830, WB24X10075, WB24X800; 3B73362F replaces for 28QBP0497, D3V-16G-3C25, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, WB24X5227 / Fit Brands Shurflo Whirlpool Honeywell LG GE electronic equipment Max Temperature T80 T130 T200 T130 T105 Terminal Number 2 2&3 3 2 3
